Light-Motor-Foot/Knee Controller Wiring Diagrams

Below are the wiring diagrams for some common Singer combinations of lights, motors, controllers, and connectors. Find the one that is similar to your machine. At the bottom is the most generic diagram in case your model is not covered.

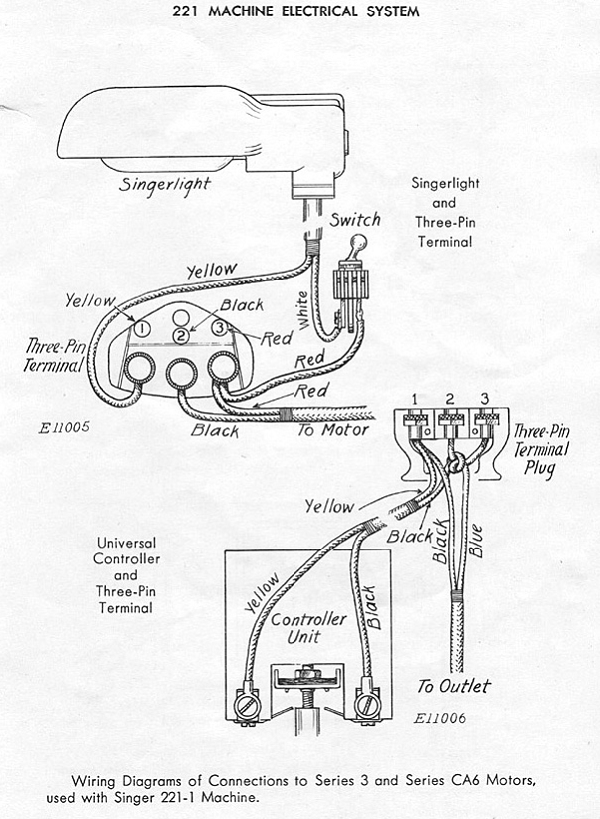

bulletSinger Model 221/222 with Series 3 or CA6 Motors

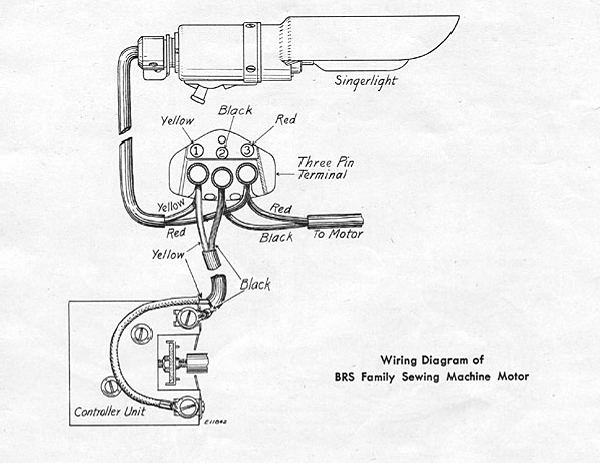

bulletSinger Series BRS Motors



bulletSinger Series BY and BZ Motors

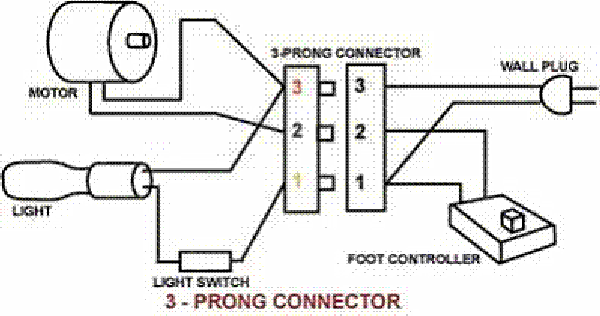

bulletSinger Generic Wiring Arrangement
